Aluminium Single Point Loadcell - PT1000 – Independent Scale Service

A direct bolt replacement for most industry standard single point cells.

The PT1000 is a dual designed model providing for increased capacities.

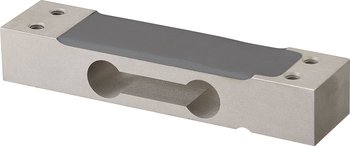

The smaller cell is from 3kg to 35kg and at only 22mm high and 130mm long it's perfect for small low cost retail scales, medical and check weighing applications with platforms up to 350mm x 350mm.

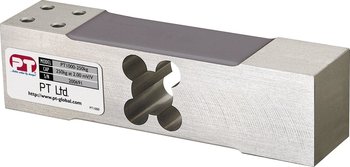

The larger size cell measures from 50kg to 250kg capacity and is ideal for platform sizes 400mm x 500mm.

This is a very compact cell for its capacity range.

Direct bolt industry standard makes both large and small PT1000's ready replacements for other less well-protected models. The PT1000 comes as standard with SURESEAL sealing and is protected to IP66.

	PT1000 Datasheet
	Product Brochure and Specifications

SPECIFICATIONS

Nominal Capacity	3kg ~ 250kg
Signal Output at Capacity	2mV/V ± 10%
Linearity Error	< 0.020% FSO
Non-Repeatability	< 0.010% FSO
Combined Error	< 0.025% FSO
Hysteresis	< 0.015% FSO
Creep/Zero Return (30 mins)	< 0.030% / 0.020% FSO
Zero Balance	< 3.000% Capacity
Temperature Effect On Span/10°C	< 0.010% FSO
Temperature Effect on Zero/10°C	< 0.015% Capacity
Compensated Temperature Range	- 10 ~ 40°C
Operating Temperature Range	- 30 ~ 70°C
Service Load	100% of Rated Capacity
Safe Load	150% of Rate Capacity
Ultimate Load	300% of Rated Capacity
Excitation +ve	RED
Signal +ve	GREEN

Input Impedance	425Ω ± 15Ω
Output Impedance	350Ω ± 3Ω
Insulation Impedance	>5000 MΩ at 100V DC
Excitation Voltage (Rec)	5 ~ 12V AC/DC
Excitation Voltage (Max)	15V AC/DC
Eccentric Loading (effect/cm)	< 0.0085% FSO (3 ~ 35kg), < 0.0074% FSO (50 ~ 250kg)
Deflection at Rated Capacity	< 0.4mm
Storage Temperature Range	-50 ~ 70°C
Cable Type	4mm, Screened, PVC Sheath 4-core x 0.09mmª (28 AWG)
Cable Length	0.5 Metre (3kg ~ 35kg), 1 Metre (50kg ~ 250kg)
Material	Aluminium
Finish	Marine Anodised
Excitation -ve	BLACK
Signal -ve	WHITE

DIMENSIONS	CAPACITIES
	Model PT1000-3kg PT1000-5kg PT1000-7kg PT1000-10kg PT1000-15kg PT1000-20kg PT1000-30kg PT1000-35kg PT1000-50kg PT1000-100kg PT1000-150kg PT1000-200kg PT1000-250kg	Capacity 3kg 5kg 7kg 10kg 15kg 20kg 30kg 35kg 50kg 100kg 150kg 200kg 250kg

(Due to PT’s policy of continuous development, specifications and products offered are subject to change without notice.)
