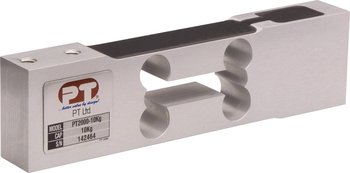

Aluminium Single Point Loadcell - PT2000

Product Variant PT2000-5kg PT2000-7kg PT2000-10kg PT2000-15kg PT2000-20kg PT2000-30kg PT2000-50kg PT2000-75kg PT2000-100kg

Quantity

$242.00 AUD

Sale Sold out

View full details

Description

Our most popular single point model, used in high numbers in shop counter retail and bench scales.

The PT2000 is available in 9 capacities from 5kg to 100kg. Industry standard design allows interchange with many manufacturers models.

A popular cell for retail scale manufacture because of its generous platform size of 400mm x 400mm, also used extensively in belt conveyer and check weighing applications.

Protected with SURESEAL to IP66 the PT2000 is standard with overload protection facility built-in.

Marine grade anodised and designed to have low sensitivity to off-center loading it's a perfect load cell selection for the volume scale manufacturer.

	PT2000 Datasheet
	Product Brochure and Specifications

SPECIFICATIONS

Nominal Capacity	5kg ~ 100kg
Signal Output at Capacity	2mV/V ± 10%
Linearity Error	< 0.020% FSO
Non-Repeatability	< 0.010% FSO
Combined Error	< 0.025% FSO
Hysteresis	< 0.015% FSO
Creep/Zero Return (30 mins)	< 0.030% / 0.020% FSO
Zero Balance	< 3.000% Capacity
Temperature Effect On Span/10°C	< 0.010% FSO
Temperature Effect on Zero/10°C	< 0.015% Capacity
Compensated Temperature Range	- 10 ~ 40°C
Operating Temperature Range	- 30 ~ 70°C
Service Load	100% of Rated Capacity
Safe Load	150% of Rate Capacity
Excitation +ve	RED
Signal +ve	GREEN

Ultimate Load	300% of Rated Capacity
Input Impedance	425Ω ± 15Ω
Output Impedance	350Ω ± 3Ω
Insulation Impedance	>5000 MΩ at 100V DC
Excitation Voltage (Rec)	5 ~ 12V AC/DC
Excitation Voltage (Max)	15V AC/DC
Eccentric Loading (effect/cm)	< 0.0074% FSO
Deflection at Rated Capacity	< 0.4mm
Storage Temperature Range	-50 ~ 70°C
Cable Type	4mm, Screened, PVC Sheath, 4-core x 0.09mmª (28 AWG)
Cable Length	2 Metres
Material	Aluminium
Finish	Marine Anodised
Excitation -ve	BLACK
Signal -ve	WHITE

DIMENSIONS	CAPACITIES
	Model PT2000-5kg PT2000-7kg PT2000-10kg PT2000-15kg PT2000-20kg PT2000-30kg PT2000-50kg PT2000-75kg PT2000-100kg	Capacity 5kg 7kg 10kg 15kg 20kg 30kg 50kg 75kg 100kg

(Due to PT’s policy of continuous development, specifications and products offered are subject to change without notice.)
