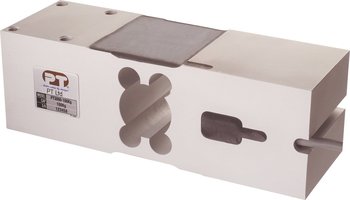

Aluminium Single Point Loadcell - PT3000

Product Variant PT3000-50kg PT3000-75kg PT3000-100kg PT3000-150kg PT3000-200kg PT3000-250kg PT3000-300kg PT3000-500kg PT3000-635kg

Quantity

$594.00 AUD

Sale Sold out

View full details

Description

Having a high number of specific capacities and low sensitivity to off-center loading allows better selection for accuracy in high speed weighers, check weighers, hopper scales & net weighers.

Available in 9 capacities from 50kg to 635kg with a maximum platform size of 600mm x 600mm.

This is a perfect load cell for the light to medium bench and platform scale market.

Used extensively in process weighing, check weighing, bag filling and overhead track weighing.

The PT3000 is a robustly constructed marine grade anodised cell with SURESEAL protection to IP66.

	PT3000 Datasheet
	Product Brochure and Specifications

SPECIFICATIONS

Nominal Capacity	50kg ~ 635kg
Signal Output at Capacity	2mV/V ± 10%
Linearity Error	< 0.020% FSO
Non-Repeatability	< 0.010% FSO
Combined Error	< 0.025% FSO
Hysteresis	< 0.015% FSO
Creep/Zero Return (30 mins)	< 0.030% / 0.020% FSO
Zero Balance	< 3.000% Capacity
Temperature Effect On Span/10°C	< 0.010% FSO
Temperature Effect on Zero/10°C	< 0.015% Capacity
Compensated Temperature Range	- 10 ~ 40°C
Operating Temperature Range	- 30 ~ 70°C
Service Load	100% of Rated Capacity
Safe Load	150% of Rate Capacity
Ultimate Load	250% of Rated Capacity
Excitation +ve	RED
Signal +ve	GREEN

Input Impedance	425Ω ± 15Ω
Output Impedance	350Ω ± 3Ω
Insulation Impedance	> 5000 MΩ at 100V DC
Excitation Voltage (Rec)	5 ~ 12V AC/DC
Excitation Voltage (Max)	15V AC/DC
Eccentric Loading (effect/cm)	< 0.005% FSO
Deflection at Rated Capacity	< 0.4mm
Storage Temperature Range	-50 ~ 70°C
Cable Type	4mm, Screened, PVC Jacket, 4-core x 0.09mmª (28 AWG)
Cable Length	3 Metres
Net Weight	1.85kg
Material	Aluminium
Finish	Marine Anodised
Excitation -ve	BLACK
Signal -ve	WHITE

DIMENSIONS	CAPACITIES
	Model PT3000-50kg PT3000-75kg PT3000-100kg PT3000-150kg PT3000-200kg PT3000-250kg PT3000-300kg PT3000-500kg PT3000-635kg	Capacity 50kg 75kg 100kg 150kg 200kg 250kg 300kg 500kg 635kg

(Due to PT’s policy of continuous development, specifications and products offered are subject to change without notice.)
