Low Profile Shearbeam - LS

Product Variant LS-50kg LS-100kg LS-250 250kg NSC Approved LS-250kg LS-500kg LS-1000kg LS-2500kg LS-5000kg LS-10000kg

Quantity

$690.80 AUD

Sale Sold out

Description

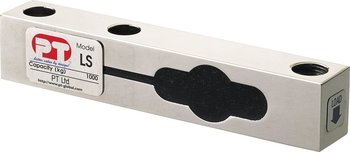

The LS is one of the few true low profile shearbeam loadcells. If height is an issue with your application, consider a 1t shearbeam at only 24mm high, similar space savings are seen across the LS series.

Known and recognised by its keyhole feature, the LS is used extensively in airport baggage scales and all types of above and in-ground platform weighing scales.

With one of the worlds largest capacity spreads in a single model the LS is available from 50kg to 10t in 8 capacities.

A full range of mounting accessories are available.

	LS Load Cell videoLS - Introducing the LS shear beam load cell

LS Load Cell
videoLS - Introducing the LS shear beam load cell

	LS Datasheet
	Product Brochure and Specifications

SPECIFICATIONS

Nominal Capacity	50kg ~ 10t
Signal output at capacity	2mV/V ± 0.1%
Linearity Error	< 0.017% FSO
Non-Repeatability	< 0.010% FSO
Combined Error	< 0.023% FSO
Hysteresis	< 0.010% FSO
Creep/Zero Return(30 mins)	< 0.023% / 0.017% FSO
Zero Balance	< 1.000% Capacity
Temperature Effect On Span/10ºC	< 0.010% FSO
Temperature Effect on Zero/10ºC	< 0.015% Capacity
Compensated Temperature Range	-10 ~ 50°C
Operating Temperature Range	-30 ~ 70°C
Service Load	100% of Rated Capacity
Excitation +ve	RED
Signal +ve	GREEN
Sense +ve	BROWN

Safe Load	150% of Rated Capacity
Ultimate Load	300% of Rated Capacity
Input Resistance	410Ω Nominal
Output Resistance	352.2Ω Matched ± 0.2Ω
Insulation Resistance(bdg to grd))	< 5000 MΩ at 100V DC
Excitation Voltage (Rec)	5 ~ 15V AC/DC
Excitation Voltage (Maximum)	15V AC/DC
Storage Temperature Range	-50 ~ 70°C
Cable Type	5.5mm, Screened, PVC Sheath 6 Core x 0.24mm² (24 AWG)
Cable Length	3 Metres (50kg ~ 1t), 5 Metres (2.5t ~ 10t)
Material	Alloy Tool Steel
Finish	Electroless Nickel Plated
Excitation -ve	BLACK
Signal -ve	WHITE
Sense -ve	BLUE

DIMENSIONS	CAPACITIES
	Model LS-50kg LS-100kg LS-250kg LS-500kg LS-1t LS-2.5t LS-5t LS10t	Capacity 50kg 100kg 250kg 500kg 1t 2.5t 5t 10t

Dimensions (mm)
Capacity	A	B	C	D	E	F	H	L	M	R	S	T	W	X	Weight
50kg	10	35	72	Ø12	Ø11	55	20	127	24	2	Ø10.3	M12 x 1.75	20	45	0.4
100kg	10	35	72	Ø12	Ø11	55	20	127	24	2	Ø10.3	M12 x 1.75	20	45	0.4
250kg	10	35	72	Ø12	Ø11	55	18	127	24	2	Ø10.3	M12 x 1.75	20	45	0.4
500kg	10	35	72	Ø12	Ø11	55	24	127	24	2	Ø10.3	M12 x 1.75	20	45	0.5
1t	10	35	72	Ø12	Ø11	55	24	127	24	2	Ø10.3	M12 x 1.75	20	45	0.5
2.5t	15	64	88	Ø20	Ø13	94	38	182	43	5	Ø13.0	none	25	75	1.2
5t	20	76	109	Ø30	Ø17	115	47.5	225	63	7.5	Ø17.0	none	35	210	2.6
10t	25	90	112	Ø40	Ø26	115	65	252	78	10	Ø26.0	none	48	710	4.9

(Due to PT’s policy of continuous development, specifications and products offered are subject to change without notice.)
