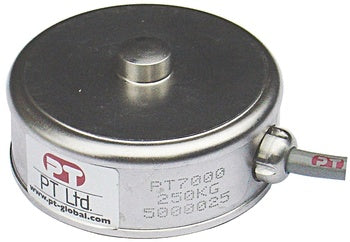

The PT7000 stainless steel mini-disk load cell is ideal for tank, hopper and silo weigh systems. Offering a high protection rating of IP68, it’s ideal for food hygiene and high wash down areas.

The advanced welding technique used makes it the best low profile sealed stainless steel compression load cell we have ever offered.

PT7000 can replace LPX models to offer a higher IP protection rating. An upgrade plate is required if a PT7000 is used in an existing LPX mount. PT7000 doesn’t bolt through the bottom plate, it’s a simple drop in load cell which is easy to remove for maintenance and repairs.

Pdf_icon PT7000 Datasheet
Product Brochure and Specifications

SPECIFICATIONS
Signal output at capacity 2±0.02 mV/V
Linearity Error < 0.070% FSO
Non-Repeatability < 0.050% FSO
Hysteresis < 0.050% FSO
Creep/(30 mins) < 0.070% FSO
Zero Balance < 1% Capacity
Temperature Effect On Span/10ºC < 0.025% FSO
Temperature Effect on Zero/10ºC < 0.025% FSO
Compensated Temperature Range -10 ~ 50 C
Operating Temperature Range -20 ~ 65 C
Storage Temperature Range -50 ~ 85 C
Excitation +ve RED
Signal +ve GREEN
Service Load 100% Capacity
Safe Load 150% Capacity
Safe Side Load 10% Capacity
Ultimate Load 300% Capacity
Input Resistance 410Ω Nominal
Output Resistance 350Ω ± 3Ω
Insulation Resistance > 5000 MΩ (@50 VDC)
Excitation Voltage (Rec) 5 ~ 15V AC/DC
Excitation Voltage (Max) 20 V AC/DC
Cable PUR Dia. 4.5~5.0 mm
Material 17-4PH Stainless Steel
Excitation -ve BLACK
Signal -ve WHITE

DIMENSIONS CAPACITIES
PT7000 Model
PT7000-100kg
PT7000-250kg
PT7000-500kg
PT7000-1000kg
PT7000-2500kg
PT7000-5000kg
PT7000-10000kg
PT7000-25000kg
PT7000-50000kg
 Capacity
100kg
250kg
500kg
1000kg
2500kg
5000kg
10000kg
25000kg
50000kg

Dimensions (mm)
Capacity
 Order A
 B
 C
 D
 E
 F
 Cable (m) Weight(kg)
100kg
 70M0100S000XXX 25.0
 52.0
 5.0
 10.0
 31.0
 10.5
 3 0.4
250kg 70M0250S000XXX 25.0
 52.0
 5.0
 10.0
 31.0
 10.5
 3 0.4
500kg
 70M0500S000XXX 25.0
 52.0
 5.0
 10.0
 31.0
 10.5
 3 0.4
1000kg 70M1000S000XXX 25.0 52.0 5.0 10.0 31.0 10.5 3 0.4
2500kg 70M2500S000XXX 25.0 52.0 5.0 10.0 31.0 10.5 3 0.4
5000kg 70M5000S000XXX 35.0 100.0 7.0 20.0 55.0 10.5 5 1.7
10000kg 70M010TS000XXX 35.0 100.0 7.0 20.0 55.0 10.5 5 1.7
25000kg 70M025TS000XXX 50.0 115.0 10.0 32.0 62.5 10.5 10 3.2
50000kg 70M050TS000XXX 55.0 155.0 13.0 45.0 82.5 10.5 10 7.0
(Due to PT’s policy of continuous development, specifications and products offered are subject to change without notice.)
